What is
a Support Package?
- When
an end user of SAP finds a bug in the SAP product, he reports the same to
SAP support. SAP programmers inspect the bug and develop a correction for
the bug. This correction is known as SNOTE (SAP Note).
- With
time, multiple end users, report bugs for which SAP releases SNOTE. SAP
collects all these corrections in one place and this collection is called
SUPPORT PACKAGE. This support package also includes enhancements to
earlier versions of SAP.
- In
simple words collection of SAP NOTES is called as SUPPORT PACKAGE.
- Support
Packages are implemented in SAP system using Transaction SPAM (Support
Package Manager)
What is
Support Package Stack (SPS)?
The Support Package Stack is a list of ABAP and Java Support
Packages for all software components (SC) included in SAP NetWeaver. It is used
to bring each Software Component of SAP
NetWeaver to a defined Support Pack (SP) level.
Support Package Stack, commonly known as STACK bundles all
required components or individual patches that are already tested together and
recommended applying as SPS instead of individual patch (until and unless you
face some problem which requires certain components to be patched).
What are Support Pack Stack version numbers?
Support Package Stacks have a release number, and a Stack
number, Example, SAP NetWeaver ’04 Support Package Stack 11.
Each software component has a separate sequence of Support
Packages.
The following list contains the technical names of a number of
components and the notation for their Support Packages:
- COP
(Component Package):
- SAP_APPL
(SAP APPL Support Package): SAPKH<rel><no>
- SAP_BASIS
(Basis Support Package): SAPKB<rel><no>
- SAP_ABA
(Application Basis SP): SAPKA<rel><no>
- SAP_HR
(SAP HR Support Package): SAPKE<rel><no>
- SAP_SCM
(SCM Support Package): SAPKY<rel><no>
- SAP_BW
(BW Support Package): SAPKW<rel><no>
- SAP_CRM
(CRM Support Package): SAPKU<rel><no> Small Business
Pre-requisites
for Support Package implementation
- Support
packages should be always applied in client 000.
- The
user to be used for the support package implementation must have
authorizations equivalent to DDIC or SAP*
- Call
the transaction SPAM and see if any previous Support Package import is
incomplete. You can proceed ahead unless the previous support package
import is successful.
- Ensure
that there is enough space in the transport directory. The transport
directory is located at /usr/sap/trans

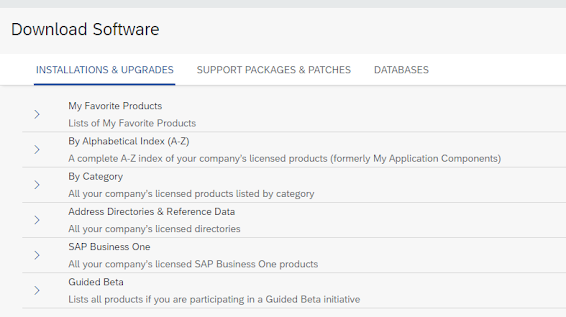

Step 1) Download Support Packs
Support Packages are available in SAP Support Portal,
under https://support.sap.com/en/index.html
Step 2) Loading Support Packages:
To load support packages we have two options: -
1.
From Application Server
2.
From Front End
From Application Server
1.
Download the support packages from service marketplace and save
them at OS level in directory /usr/sap/trans.
2.
Uncompress these files using sapcar executable
sapcar –xvf
<support package name>
After uncompressing the support packages at OS level the .PAT
and .ATT files are stored in /usr/sap/trans/EPS/in directory.
Next, load the Support Packages into SAP system by choosing
Support Package –>Load Package –> From Application Server
From Front End
Choose Support Package –> Load Packages –> From Front End

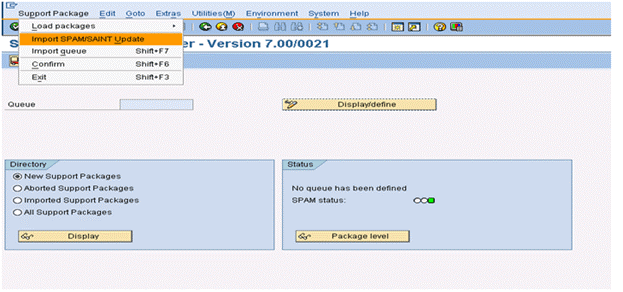

Step 3) SPAM/SAINT Update:
A SPAM/SAINT Update contains updates and improvements to Support
Package Manager (SPAM) and Add-On Installation Tool (SAINT). There is always
one SPAM update for each release. SPAM/SAINT update is mandatory before any
support package upgrade.
Step 4) Defining Queue
Queue contains the Support Packages available for the different
SAP Components installed in your system. This Queue information is derived from
the support pack uploaded in Step 2.
1.On the initial screen in Support Package Manager, choose
Display/Define.
2.A list of installed software components (for example,
SAP_BASIS, SAP_HR, SAP_BW) is displayed.
3.Once you select the required component, the current queue appears. This queue contains the Support Packages available for the selected component in your system. If you want to define the queue for another software component, choose Other Component. If the displayed queue meets your requirements, you can confirm it by choosing Confirm Queue
Step 5) Importing Queue.
Once you a define a Queue (Step 4) while selecting a particular
component (for which we want to upgrade support pack), we need to do ‘Import
queue’ to start importing/applying that particular selected support pack (as
per the standard SAP process).
Choose Support Package –> Import Queue
To become familiar with known problems and issues, always read
the note mentioned in above screenshot.
The support package import has been started
Step 6) Confirming Queue:
Confirm that the queue has been imported successfully into your
system. This allows you to import Support Packages in the future. You will not
be able to import Support Packages further, if you do not confirm the queue.
Once Queue has been imported, SPAM status becomes YELLOW
Confirm successful import of the Support Packages into your
system by choosing Support Package à Confirm.
Checking Logs
- IMPORT LOG: It displays logs for Support Package Manager Phases that are used by transport control program tp(transport control program).Go to–>Import log–>Queue
ACTION LOG: It contains information about the actions that take place during the individual phases (while importing the current queue).It also includes information about the point at which a phase was stopped, as well as detailed error information.
To display the logs for
the current queue Go to–>Action log
- While the support packages are being imported, logs are made into the tmp directory (path: usr/sap/trans/tmp)
- Once the import process is completed logs can be viewed from the log directory (path: usr/sap/trans/log)
